Product List

Click each product name to see detailed information.

ＳＬ－２ＣＴ ＴＯＵＧＨ

Feature

EP rubber, which has the best electrical characteristics is used as an insulator. Then, a tough special natural rubber developed with the unique compounding technology of Mitsuboshi has been a used for the sheath. A new cable that is slim, light, highly flexible,and has excellent weather resitance which makes it lasts longers with no cracks. It complies with the RoHS2

Structure

Application

ＳＬ－２ＣＴ ＴＯＵＧＨ

It is used in mining, portable power supply, worksites, indoor or outdoor, wiring and other applications for moving electrical equipment and wiring below 600 V.
● Temporary construction (construction/civil engineering): Tower crane, lighting equipment, generator
● Shipbuilding, marine construction, civil engineering: Welder (primary side), generator, vibro, earth auger
● Other: Industrial equipment

View Pamphlet (PDF)

Close

２ＰＮＣＴ

Feature

These cables are designed to japan electrical appliance and material safety law.
In insulation,ethylene propylene rubber is used and in jacket,polychloroprene rubber is employed.
2PNCT is superior to 1CT,2CT in the followings.
①Ampacity is bigger
②Nominal overall diameter and mass are smaller.
③Better oil resistance and abrasion resistance.
It complies with the RoHS2

Structure

Application

２ＰＮＣＴ

For use in portable power supply,worksites,stage and visual equipment,port area and dams.

View detailed PDF catalogue Product specification (PDF)

Close

３ＰＮＣＴ

Feature

These cables are designed to japan electrical appliance and material safety law.
In insulation,ethylene propylene rubber is employed and in jacket,polychloroprene rubber is used.And the reinforcing layer provides superior abrasion resistance and impact resistance.
3PNCT is superior to 3CT in the followings.
①Ampacity is bigger
②Nominal Overall diameter and mass are smaller.
③Superior oil resistance and abrasion resistance.

Structure

Application

３ＰＮＣＴ

Applicationincludes portable power supplies,worksites,stage and visual equipment,port,dams and TBM.
Also for use in cold and severe industrial environments.

View detailed PDF catalogue Product specification (PDF)

Close

WCT、WRCT

Feature

WCT(For Connection）
Natural rubber is used in jacket.
WRCT(For Holder）
In jacket and insulation,natural rubber is employed.
Super flexible stranded conductor provides high flexibility.

Structure

Application

WCT、WRCT

Application includes the secondaries’ use for Arc Welding Cables.

(no-load voltage less than 85 V)

View detailed PDF catalogue WCT Product
specification (PDF) View　Pamphlet（PDF）

Close

WNCT、WRNCT

Feature

WNCT(For Connection）
Polychloroprene rubber in jacket provides superior oil
resistance,weather resistance and flame resistance.

WRNCT(For Holder）
Polychloroprene rubber in jacket provides superior oil resistance,weather resistance and flame resistance.
Super flexible stranded conductor provides superior flexibility.

Structure

Application

WNCT、WRNCT

Application　includes the secondaries’ use for Arc Welding Cables.

(no-load voltage less than 85 V)

View detailed PDF catalogue WNCT Product specification (PDF) WRNCT Product specification (PDF)

Close

E-WCT、E-WRCT

Feature

These cables are superior to WNCT,WRNCT in terms of rating temperature. Therefore,smaller size cables can be employed.

E・WCT(For Connection)

Flame retardant cross-linked polyethylene in jacket provides superior flame resistance,spatter resistane and weather resistance.

E・WRCT(For Holder）

Additionally to the E・WCT feature,super flexibile stranded conductor is used.

Structure

Application

E-WCT、E-WRCT

Application includes the secondaries’ use for Arc Welding Cables.(no-load voltage less than 85V)

View detailed PDF catalogue E-WCT（R) Product specification (PDF)

Close

ES-WCT

Feature

It uses a conductor with excellent flexibility and a flame-retardant. Sheath uses cross-linked polyethylene which has good flexibility, flame resistance (spatter resistance) and weather resistance. Since the allowable temperature of the covering material is high, the allowable current is also high, and it is possible to reduce the size by 1-2 compared to WCT/WRCT, making cost economical. Maximum allowable temperature is 105℃. It complies with the RoHS2.

Structure

Application

ES-WCT

It can be mainly used on the secondary side (base material side/hand side) of the arc welder.

ES-WCT View Pamphlet (PDF) ES-WCT Welldiing cablle set
View Pamphlet (PDF)

Close

VCT

Feature

General purpose Vinyl cable which has flexibility.
Gray Sheath color is standard,but we could employ black-color if you want.
*We also manufacture the cables with more than 20 cores and more than 2 ㎟ of core.In compliance with RoHS.

Structure

Application

VCT

For the power supply circuites of traveling electric appliances and where flexibility is required.

View detailed PDF catalogue VCT Product specification (PDF)

Close

BR-TYPE

Feature

The products BR-MCT, BR-VCT (made-to-order product), BR-2PNCT (made-to-order product). The bending resistance has been improved by devising the conductor structure (thin diameter bending resistant conductor) and twisted structure. It is a product compatible with the RoHS2 command.

Structure

Application

ＢＲ－ＭＣＴ

BR-2PNCT uses a strong chloroprene sheath, it is suitable for mobile machines used outdoors such as cranes. 3PNCT can also be produced. Maximum allowable temperature is 80℃.

Close

BP-TYPE

Feature

BP-type are BP-VCT (made-to-order product) and BP-2PNCT (made-to-order product). A high-grade product that uses an aramid fiber reinforced conductor to further improve the bending and tensile resistance of conventional braided conductor CT. It is a product compatible with the RoHS2 command.

Structure

Application

ＢＰ－ＶＣＴ

The BP-2PNCT is suitable for harsh applications requiring tension resistance and bending resistance, such as the reel winding method. 3PNCT is also available. Maximum allowable temperature is 80℃.

Close

BF-2PNCT

Feature

BF-2PNCT is an intervening type with an interposer inserted on the center of the wire, which is lighter and more bend resistant than 2PNCT. It uses ethylene propylene rubber as an insulator, has excellent electrical characteristics, ozone and heat resistance. The maximum allowable temperature is 80°C. Since chloroprene rubber is used for the sheath, it withstands overuse such as abrasion and shock, and has excellent properties such as oil, weather and flame resistance. In addition, 9 cores or more has the same structure as 2PNCT. It is a product compatible with the RoHS2 command. (Made to order)

Structure

Application

ＢＦ－２ＰＮＣＴ

It is used in mine, industry, agriculture, etc. For electric equipment or wiring for moving below 600V, especially where oil weather and heat resistance are required.

Close

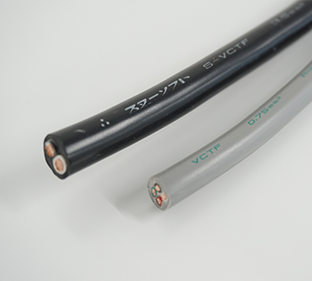

ＶＣＴＦ

Feature

General purpose Vinyl cabtire cable which has flexibility.
Gray Sheath color is standard,but we could employ black-color if you want.
*We also manufacture the cables with more than 20 cores and more than 2 ㎟ of core.In compliance with RoHS

Structure

Application

ＶＣＴＦ

Mainly for small electric tools with less than 300V inside of premises

View detailed PDF catalogue VCTF Product specification (PDF)

Close

ＣＣＣ

Feature

Heat resistant ethylene propylene rubber and oil resistant polychloroprene rubber which are designed to CCC(China Compulsory Certification)standards are employed.

Structure

Application

CCC

For use in portable power supply,worksites,stage and visual equipment,port area and dams.

View detailed PDF catalogue

Close
